Ametek ETC 125a Easy Temp Calibrator

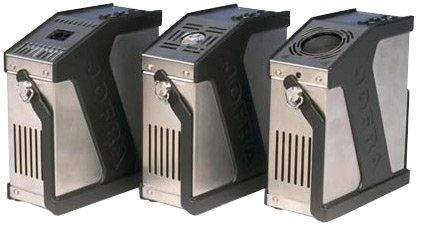

ETC 125a 400a 400r Easy Temp Calibrator
The ETC series is designed for tests and verifications of temperature sensing devices in the field.This instrument is ideal when time is a critical factor and the highest accuracy is not a requirement. Reduced size and weight are important considerations as the unit may fit into a toolbox or instrument carrying case, and can be used for sensors that are difficult to access. The ETC calibrator heats up by up to 100°C (212°F) per minute and completes a full dual-point test in less than 10 minutes, including stability time.
One-key-one-function user interface provides immediate access to setting the temperature and the auto-step time-saving function. The stability indicator provides audible and visual prompts when the temperature is stable. This function also includes a 3-minute countdown before the stable condition.
Stainless steel and rubber side panels make the instrument suitable for many years of faithful duty in an industrial environment.
One of the models - the ETC-400 R is designed for optimum speed in connection with calibration of infrared thermometers. The 36 mm (1.4 in) target provides the optimum size for reliable calibration of infrared thermometers in the process industry as it is designed for high accuracy and long-term stability while maintaining speed.
Models and temperature ranges
ETC-125A -10 to 125°C (14 to 257°F)
ETC-400A 28 to 400°C (82 to 752°F)
ETC-400R 28 to 400°C (82 to 752°F)
Features for the ETC
Complete series of temperature and IR calibrators
Multi-hole well design
RS232 and JOFRACAL calibration software
Multi information display
Auto stepping
Stability indicator
Count down timer (shows when unit is stable)
Programable maximum temperature
Fast simulation/training mode
Re-calibration from keyboard
