Ametek ITC 155a 320a 650a Ind Temp Calibrators
ITC 155a 320a 650a Ind Temp Calibrators
The ITC series employs the slim and rugged design of the CTC series. This series also features the intuitive user interface, the clear LCD display, and the functionality that is used in the successful CTC series.
However, the ITC is designed with the state-of-the-art dual-zone heating block and MVI circuitry that has been adopted from the ATC series. The MVI circuitry ensures stable temperatures even when the mains supply is unstable.
The ITC series is designed for both on-site and maintenance shop use. The applications are generally critical process control but can vary based on calibration and testing requirements. The ITC series dry-block calibrators are available in 3 different temperature ranges and all models are equipped with RS232 serial communication capabilities.

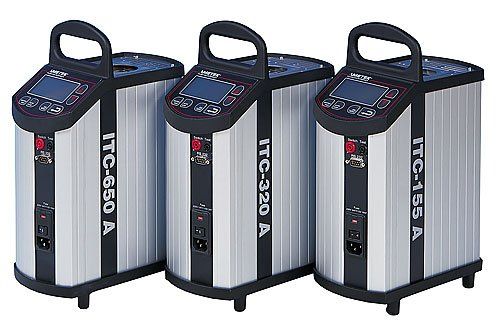

Model and temperature range
ITC-155 A -23 to 155°C (-9 to 311°F)
ITC-320 A 50 to 320°C (122 to 608°F)
ITC-650 A 50 to 650°C (122 to 1202°F)
Features for ITC
Dual-zone heating block
Interchangeable inserts
Multi-hole insertion tubes
MVI Mains Variance Immunity
Automatic switch test
RS232 and JOFRACAL calibration software
Multi information display
Safety banana bushings
Auto stepping
Stability indicator
Count down timer (shows when unit is stable)
Programmable maximum temperature
Fast simulation/training mode
Re-calibration from keyboard
