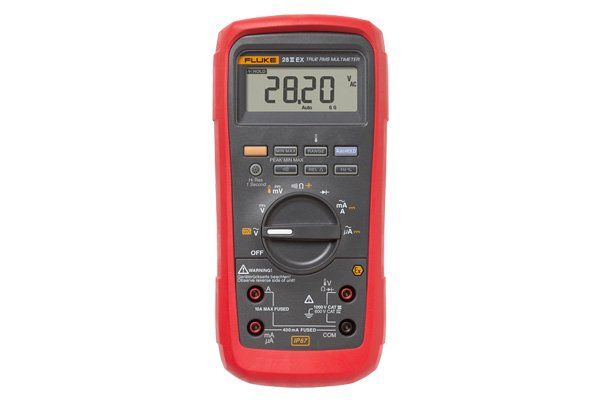

FLUKE 28 mk II EX Digital Multimeter

28 mk II EX Digital Multimeter

The Fluke 28 II Ex is the most rugged IS DMM you can buy.

A completely sealed, IP67 rated case
Withstands drops up to 10 feet or 3 meters (with holster)
Dustproof per IEC60529 IP6x
Waterproof per IEC60529 IPx7

Meets IEC Overvoltage Electrical Safety Standard No. 61010-1:2001Reversible holster for added protection of the display when not in use

Measurement Category III, 1000V, Pollution Degree 2
Measurement Category IV, 600V, Pollution Degree 2
All the measurement functions of our most popular industrial DMMs
One tool equips you with all the testing and troubleshooting power you need wherever you go––inside or outside ATEX zones 1,2,21, or 22. No need to carry different meters for different areas, or worry about crossing through an Ex-required zone with a non-Ex rated instrument.

4-1/2 digit mode for precise measurements (20,000 counts)
True-rms ac voltage and current for accurate measurement on nonlinear signals
Measures up to 1000V and 10A ac and dc (note that Ex zones require reduced measurements)
Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)

Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies

Resistance, continuity and diode test

10,000 μF capacitance range for components and motor caps

Conductance measurements for high resistance or leakage tests

Min/Max-Average and Peak capture to record transients and variations automatically

Relative mode to remove test lead interference on resistance measurements

Auto and manual ranging for maximum flexibility

Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs

Easy to use
Important extras keep you productive all day long in less than optimal conditions.

Backlit keypad buttons provide extra visibility in poorly lit areas, even when you’re wearing full PPE

Large display digits and 2-level bright white backlight also increases visibility

Long battery life – 400 hours typical without backlight (Alkaline)

Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks

Easy to service in the field
Access to the separate battery compartment makes it easy to change batteries or fuses without jeopardizing instrument calibration.
