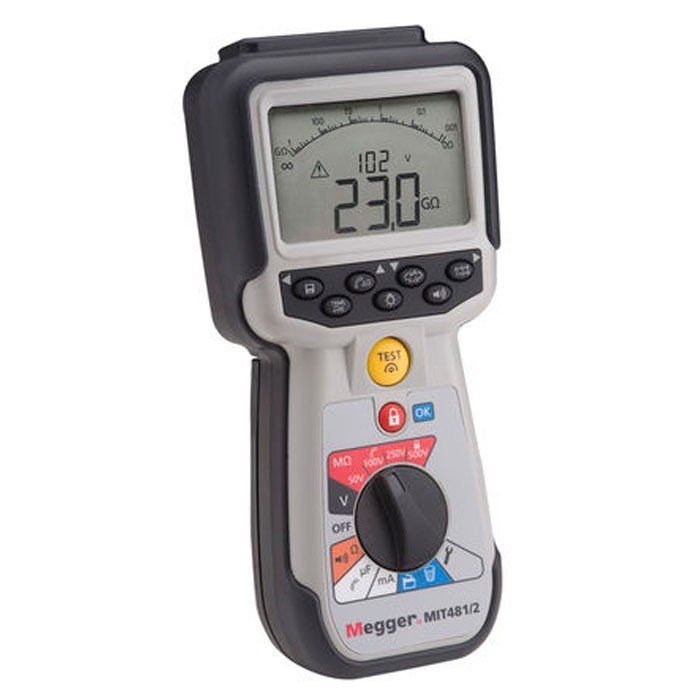

MEGGER MIT481/2 Insulation tester
MIT481/2 Insulation tester
Insulation testing up to 500 V and 100 GΩ range in a hand held instrument
3 wire connection for A, B and E (Tip, Ring and Earth) connection
Gated access to 500 V to prevent accidental damage
Rechargeable options for mains and car charging
Single range, faster continuity testing from 0.01 Ω to 1 MΩ
Differential measurement capability
Stabilised insulation test voltage
600 V Trms AC and DC voltage measurement
Test result storage and Bluetooth® downloading
CAT IV 600 V and IP 54
The MIT480 mk2 series insulation and continuity testers replace the original MIT480 range and are designed specifically for the Telecommunications and Cable testing markets.
Three terminal measurement design permits the connection of all three test leads for A, B and E (or Tip, Ring and Ground). The measurement pair is selected from the A-B-E (T-R-G) button on the front panel. Selection is confirmed in the display. No disconnection of test leads to measure individual pairs are required.
Alternatively the units can be used as a conventional Two Terminal instrument.
The range consists of two instruments:
MIT481/2 50 V, 100 V, 250 V, 500 V* + Storage
MIT485/2 50 V, 100 V, 250 V, 500 V* + Storage + Download +
recharge ready
* Gated access – prevents accidental selection
